Description

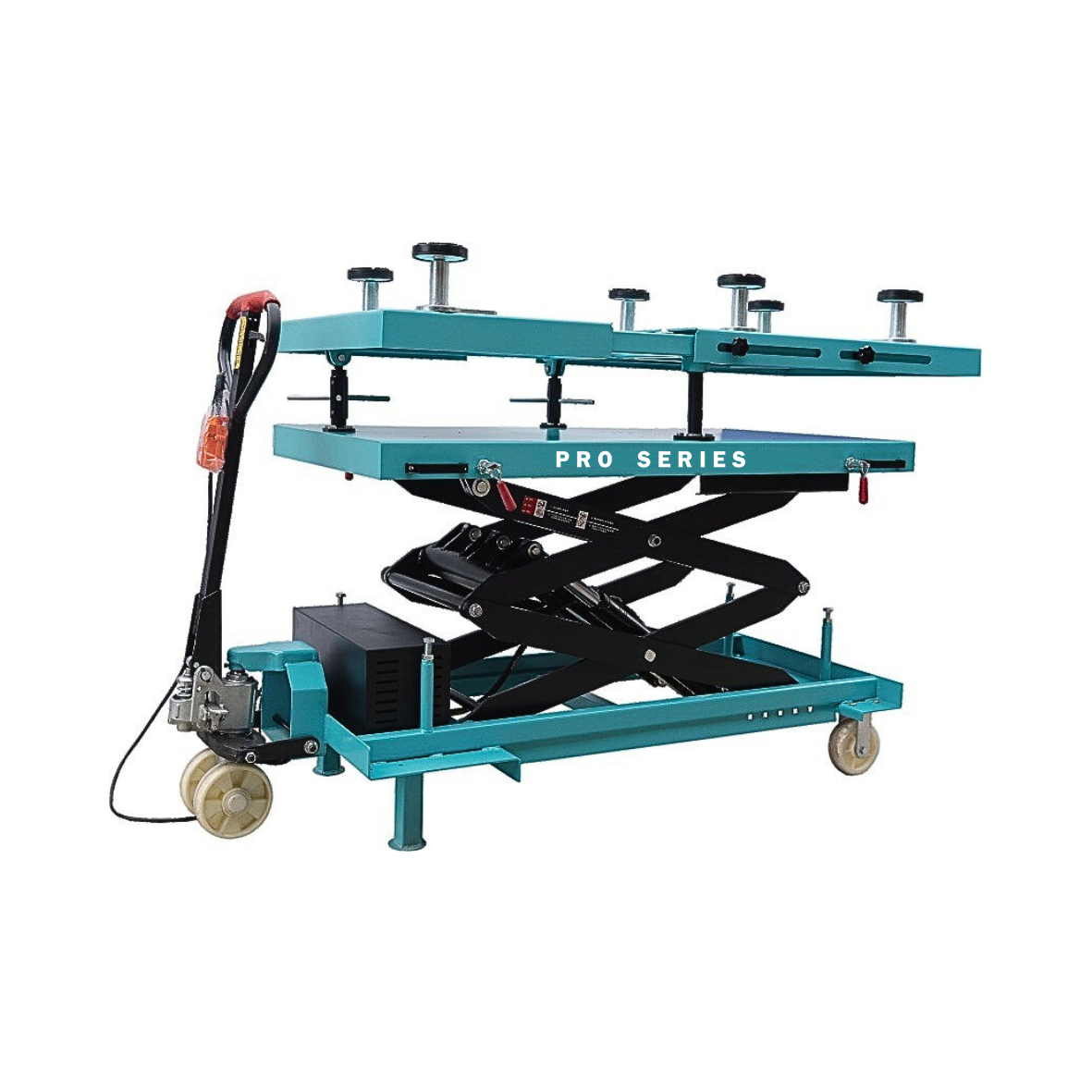

PRO SERIES New Energy Vehicle Battery Disassembly & Assembly Lift
- Scissor structure, dual oil cylinder drive, with central mechanical automatic unlocking safety device.
- Equipped with two heavy-duty 6-inch directional casters and two heavy-duty 6-inch universal brake casters.
- Platform can extend approximately 200 mm in length.
- Platform can move ±35 mm in four directions along X and Y axes, and can also be locked.
- Platform tilt adjustment of about 30 mm along X and Y axes.
- Platform equipped with detachable height-increasing legs, adjustable height 140–190 mm, convenient for battery disassembly and transfer; support legs can be adjusted within a 170 mm range.
Technical Parameter:
Load Capacity: 1500kg
Minimum Height: 800mm
Maximum Height: 2100mm
Platform size: 1500-1800 × 800mm
Voltage & Power: 12V / 220V
Net Weight: 550kg
